F88 - Full Range, Wide Dispersion and Compact
Overview

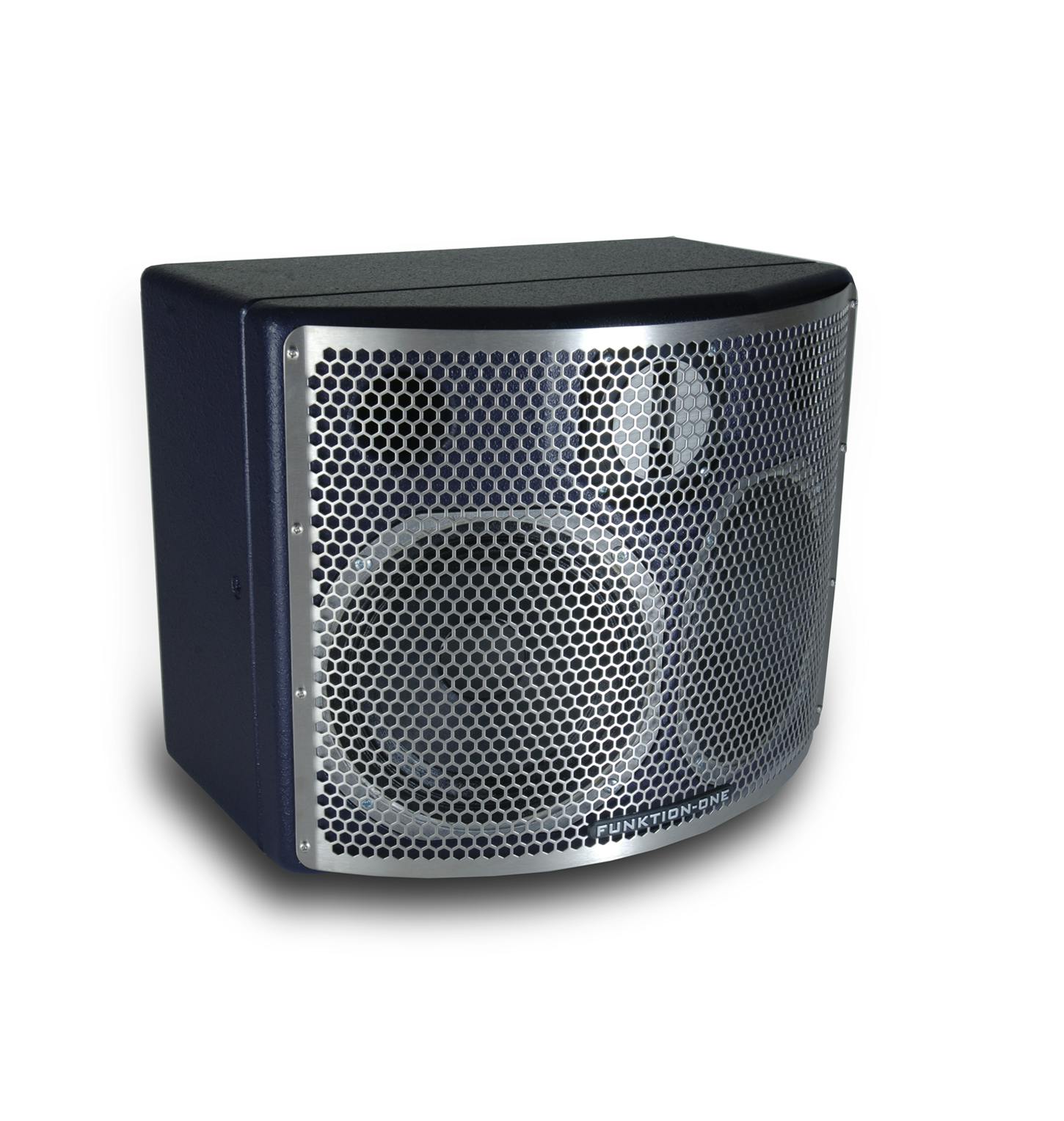

F88 is a compact yet high output loudspeaker with wide horizontal dispersion, comprising two Funktion-One designed, wide bandwidth 8” drivers with a passive slot tweeter.
Particular attention has been paid to the arrangement of the drive units to optimise coherency. The F88’s 110° dispersion and 99dB sensitivity (from 70Hz to 18kHz) enable it to be used in numerous applications including under balcony, theatre, bar, nightclub, cinema surround sound and integrated AV. The F88 delivers full-range sound and can be given more authority with the addition of Funktion-One bass enclosures - including MB212, F118 or BR118.
Please note: Serial numbers before 1462 have a 150W power rating.
PERFORMANCE FEATURES
Wide dispersion with excellent vocal intelligibility
- 1Funktion-One designed 8” drivers
- 2Wide horizontal dispersion
- 3Wide bandwidth
- 4Choice of grille types
Technical Specification
Driver
OPERATING BAND
SENSITIVITY AT 1M
POWER (AES)
NOMINAL IMPEDANCE
Driver
2 x 8" HF Slot
Operating Band
70Hz - 18kHz
Sensitivity at 1m
98dB at 2.4V
Power (AES)
400W (S/N<1462 150W)
Nominal Impedence
6Ω
USABLE BANDWIDTH (-3DB)
WEIGHT
NOMINAL DISPERSION
CONNECTORS
USABLE BANDWIDTH (-3DB)
70Hz - 18kHz
Weight
13kg (28.5lbs)
Nominal Dispersion
110° x 40°
Connectors
2 x Neutrik NL4
