F1201 - Discontinued product
Overview
Superseded by the F1201.2
When designing the F1201, the Funktion-One R&D team meticulously applied its purist approach to the ubiquitous 12” and horn-loaded 1” configuration, steering clear of any additional processing or passive network EQ and so preserving coherence of phase and transient response. The consequences are realism, detail and liveliness. The F1201 is a naturally balanced compact product with high output, even response and well defined frequencies.
PERFORMANCE FEATURES
Compact loudspeaker capable of high output
- 112” and 1” drivers optimised to Funktion-One specification
- 2Rotatable HF horn with 90º x 40º coverage pattern
- 3Excellent sensitivity
- 4High passive crossover point to HF driver for low distortion

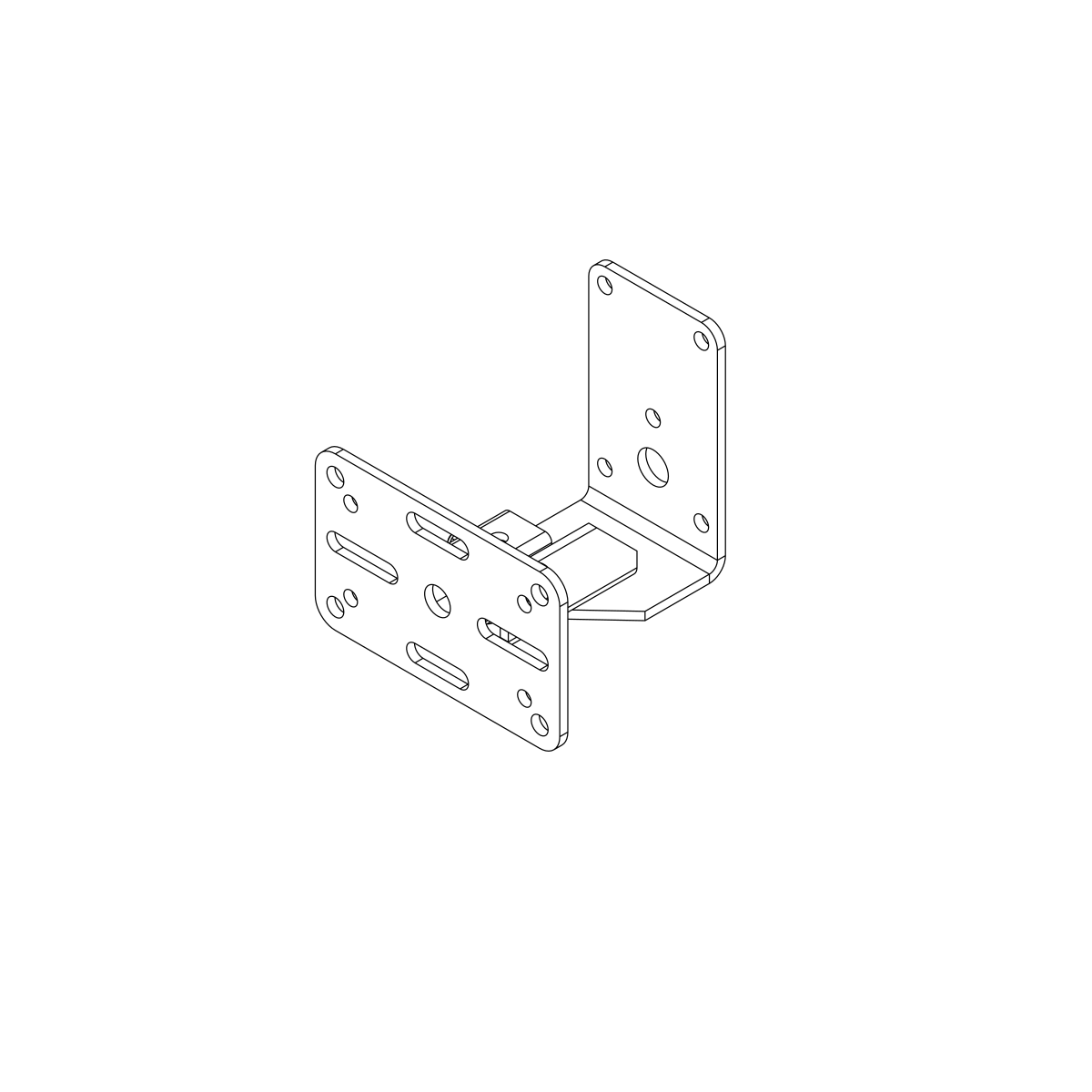

- 5Integral pole mount
Technical Specification
Driver
OPERATING BAND
SENSITIVITY AT 1M
POWER (AES)
NOMINAL IMPEDANCE
Driver
12" + 1"
Operating Band
80Hz - up
Sensitivity at 1m
100dB at 2.8V
Power (AES)
350W
Nominal Impedence
8Ω
USABLE BANDWIDTH (-3DB)
WEIGHT
NOMINAL DISPERSION
CONNECTORS
USABLE BANDWIDTH (-3DB)
60Hz - 18kHz
Weight
18kg (39lbs)
Nominal Dispersion
90° Horizontal x 40° Vertical (rotatable)
Connectors
2 x Neutrik NL4
